Image Reconstruction With Directional Sensors Example

Overview

This example demonstrates how the directionality of sensor elements can give rise to artefacts in time reversal photoacoustic image reconstruction. It builds on the Sensor Element Directivity in 2D and 2D Time Reversal Reconstruction For A Line Sensor examples.

For a more detailed discussion of this example and the underlying techniques, see B. T. Cox and B. E. Treeby, "Effect of sensor directionality on photoacoustic imaging: A study using the k-Wave toolbox," in Proc. SPIE 7564, p. 75640I, 2010.

 Back to Top

Running the simulation

The simulation is first invoked using a rectangular binary sensor mask with omnidirectional elements in the same way as previous examples. Directionality is then added to the sensor elements by assigning an angle to the corresponding elements in an Nx by Ny matrix passed to sensor.directivity_angle. These are assigned such that the maximum sensitivity of each sensor face faces inward.

% define a four-sided, square sensor
sensor.mask = zeros(kgrid.Nx, kgrid.Ny);
sensor.mask(1, :) = 1;
sensor.mask(end, :) = 1;
sensor.mask(:, 1) = 1;
sensor.mask(:, end) = 1;

% run the simulation for omnidirectional detector elements
sensor_data = kspaceFirstOrder2D(kgrid, medium, source, sensor, input_args{:});

% define the directionality of the sensor elements
sensor.directivity_angle = zeros(kgrid.Nx, kgrid.Ny);
sensor.directivity_angle(1, :) = 0;      % max sensitivity in x direction
sensor.directivity_angle(end, :) = 0;    % max sensitivity in x direction
sensor.directivity_angle(:, 1) = pi/2;   % max sensitivity in y direction
sensor.directivity_angle(:, end) = pi/2; % max sensitivity in y direction

% define the directivity size
sensor.directivity_size = 20*kgrid.dx;

% run the simulation with directional elements
sensor_data_directional = kspaceFirstOrder2D(kgrid, medium, source, sensor, input_args{:});

 Back to Top

Time-reversal image reconstruction

To examine the effect of sensor directionality on time reversal image reconstruction, the sensor data recorded from both the omni-directional and directional sensor elements is used to reconstruct the initial photoacoustic pressure distribution.

% reset the initial pressure
source.p0 = 0;

% assign the time reversal data for the omnidirectional case
sensor.time_reversal_boundary_data = sensor_data;

% run the time reversal reconstruction
p0_recon = kspaceFirstOrder2D(kgrid, medium, source, sensor, input_args{:});

% assign the time reversal data for the directional case
sensor.time_reversal_boundary_data = sensor_data_directional;

% run the time reversal reconstruction with directional elements
p0_recon_directional = kspaceFirstOrder2D(kgrid, medium, source, sensor, input_args{:});

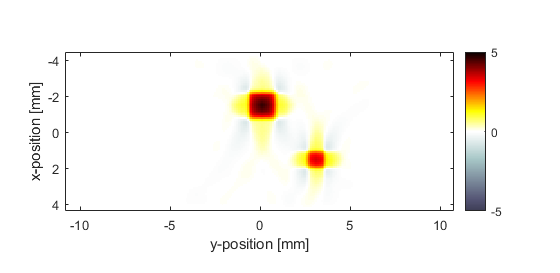

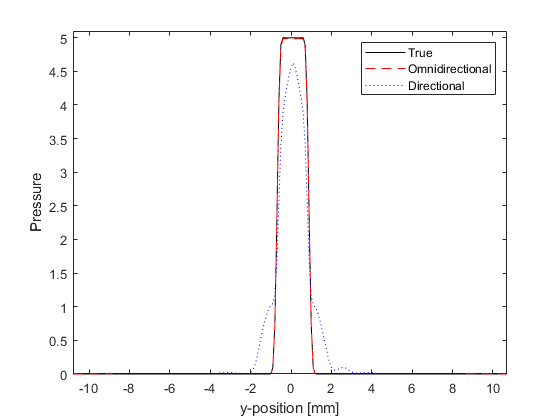

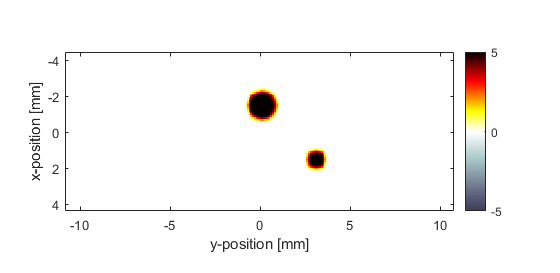

The reconstructed pressure distributions are shown below. For the omni-directional sensor, the initial pressure is reconstructed almost exactly (note, the inverse crime in which the same simulation parameters are used in both simulation and reconstruction has been committed). However, when using the directional sensor, image artefacts are introduced into the reconstruction.
