Comparison Of Modelling Functions Example
On this page… |
---|
Overview
This example provides a short comparison between the simulation functions kspaceFirstOrder2D
and kspaceSecondOrder
. It builds on the Homogeneous Propagation Medium and Using A Binary Sensor Mask examples.
For a more detailed discussion of the second order model used in k-Wave, see Treeby, B. E. and Cox, B. T., "A k-space Green's function solution for acoustic initial value problems in homogeneous media with power law absorption," J. Acoust. Soc. Am., vol. 129, no. 6, pp. 3652-3660, 2011.
About the modelling functions
In the previous examples, the acoustic simulations are all performed using kspaceFirstOrder2D
. This function is based on the sequential calculation of the particle velocity, acoustic density, and acoustic pressure using three coupled first-order partial differential equations (conservation of mass, conservation of momentum, and a pressure-density relation). For a homogeneous medium, these equations can also be combined into a single second-order acoustic wave equation and solved using Green's function methods. The function kspaceSecondOrder
is an efficient numerical implementation of a Green's function solution specifically for initial value problems. For homogeneous media, the two approaches give the same results.
Compared to kspaceFirstOrder2D
, the function kspaceSecondOrder
has greater computational efficiency and the time steps can be arbitrarily large (as the solution is exact). It also allows both an initial pressure and an initial pressure gradient to be defined (see the Setting An Initial Pressure Gradient Example). Power law absorption is also more accurately encoded (see the Modelling Power Law Absorption Example). However, kspaceSecondOrder
has slightly less functionality than its first-order counterparts (kspaceFirstOrder1D
, kspaceFirstOrder2D
, and kspaceFirstOrder3D
). For example, it only supports homogeneous media and binary sensor masks, and does not support time varying sources or the full range of visualisation options.
The second-order code does not implement an absorbing boundary layer (see Controlling The Absorbing Boundary Layer Example for more details on the perfectly matched layer used in kspaceFirstOrder2D
). Instead, to delay the appearance of wave wrapping, it extends the size of the computational grid. Although this reduces the computational efficiency, it allows the exactness of the solution to be maintained. The grid extension is controlled by setting the optional input parameter 'ExpandGrid'
to true
. Note, the wrapped waves will still appear if the simulation time is longer than the time it takes for the waves to propagate through the grid extension.
Running the simulation
The function kspaceSecondOrder
(this is used for all dimensions) takes the same input structures as the first-order simulation functions. For example, to run the Homogeneous Propagation Medium Example, the Cartesian sensor mask is first converted to a binary sensor mask using cart2grid
, and then kspaceSecondOrder
is called with 'ExpandGrid'
set to true
.
% convert the cartesian sensor mask to a binary sensor mask sensor.mask = cart2grid(kgrid, sensor.mask); % run the simulation using the second order code sensor_data = kspaceSecondOrder(kgrid, medium, source, sensor, 'ExpandGrid', true);
Numerical comparison

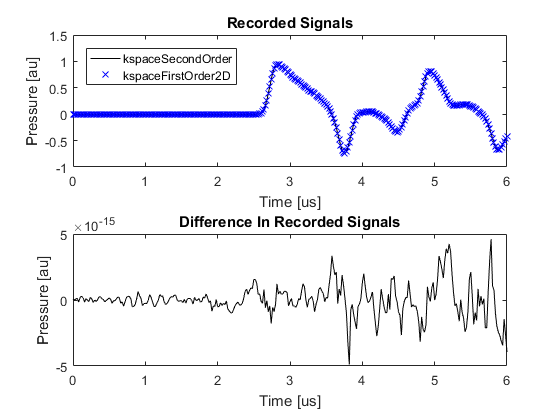

When the medium is not absorbing and no compensation for wave wrapping is used, the two simulation functions give identical results to machine precision. A plot of the signals recorded at the first sensor position and the difference between them is given below (set example_number = 1
within the example m-file).

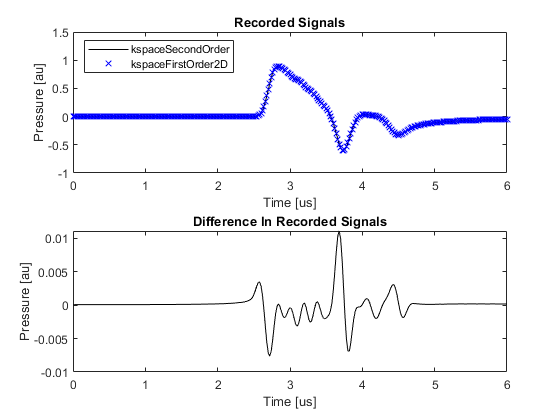

When the medium is absorbing and wave wrapping is mitigated using a perfectly matched layer, there is a small error in the numerical result computed using kspaceFirstOrder2D
. This error is largely due to the calculation of the power law absorption term (see the Modelling Power Law Absorption Example). A plot of the signals recorded at the first sensor position and the difference between them is given below (set example_number = 4
within the example m-file).
