# makeCartRect

Create evenly distributed Cartesian points covering a rectangle.

## Syntax

```rect = makeCartRect(rect_pos, Lx, Ly, theta, num_points)
rect = makeCartRect(rect_pos, Lx, Ly, theta, num_points, plot_rect)
```

## Description

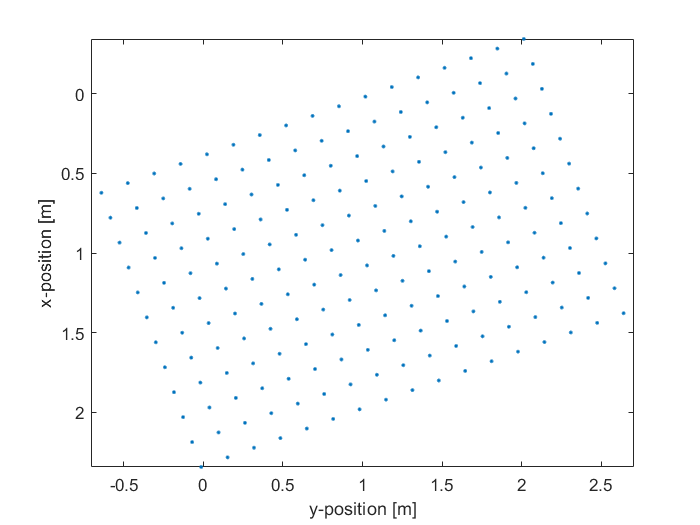

`makeCartRect` creates an array of the Cartesian coordinates of points evenly distributed over a rectangle. The position of the rectangle is set by `rect_pos`, and its height and width are specified by `Lx` and `Ly`. If `rect_pos` is given as a 2 element vector, the Cartesian rectangle points are returned in 2D. These points are rotated within the plane if an angle `theta` is given. If `rect_pos` is given as a 3 element vector, the Cartesian rectangle points are returned in 3D assuming the rectangle lies in the x-y plane. The orientation of the 3D points can be adjusted by giving `theta` as a 3 element vector specifying the yaw, pitch, and roll of the rectangle. The 2D plot that is displayed after calling `makeCartRect([1, 1], 2, 3, 20, 200, true);` is given below.

## Inputs

 `rect_pos` Cartesian position of the centre of the rectangle given as a two (2D) or three (3D) element vector [m] `Lx` Height of the rectangle (along the x-coordinate before rotation) [m] `Ly` Width of the rectangle (along the y-coordinate before rotation) [m] `theta` Either a scalar (2D) or three element vector (3D) `[tx, ty, tz]` specifying the orientation of the rectangle [deg]. In 3D, the rotations are specified about x-y'-z'' (intrinsic rotations) or z-y-x (extrinsic rotations). All rotations are counter-clockwise. Can be set to [] if no rotation. `num_points` Approximate number of points on the rectangle. This is rounded upwards to ensure the number of points along each side is an integer.

## Optional Inputs

 `plot_rect` Boolean controlling whether the Cartesian points are plotted (default = false)

## Outputs

 `rect` 2 x `num_points` or 3 x `num_points` array of Cartesian coordinates (note, `num_points` is adjusted, as described above)

`makeDisc`, `makeCartBowl`
